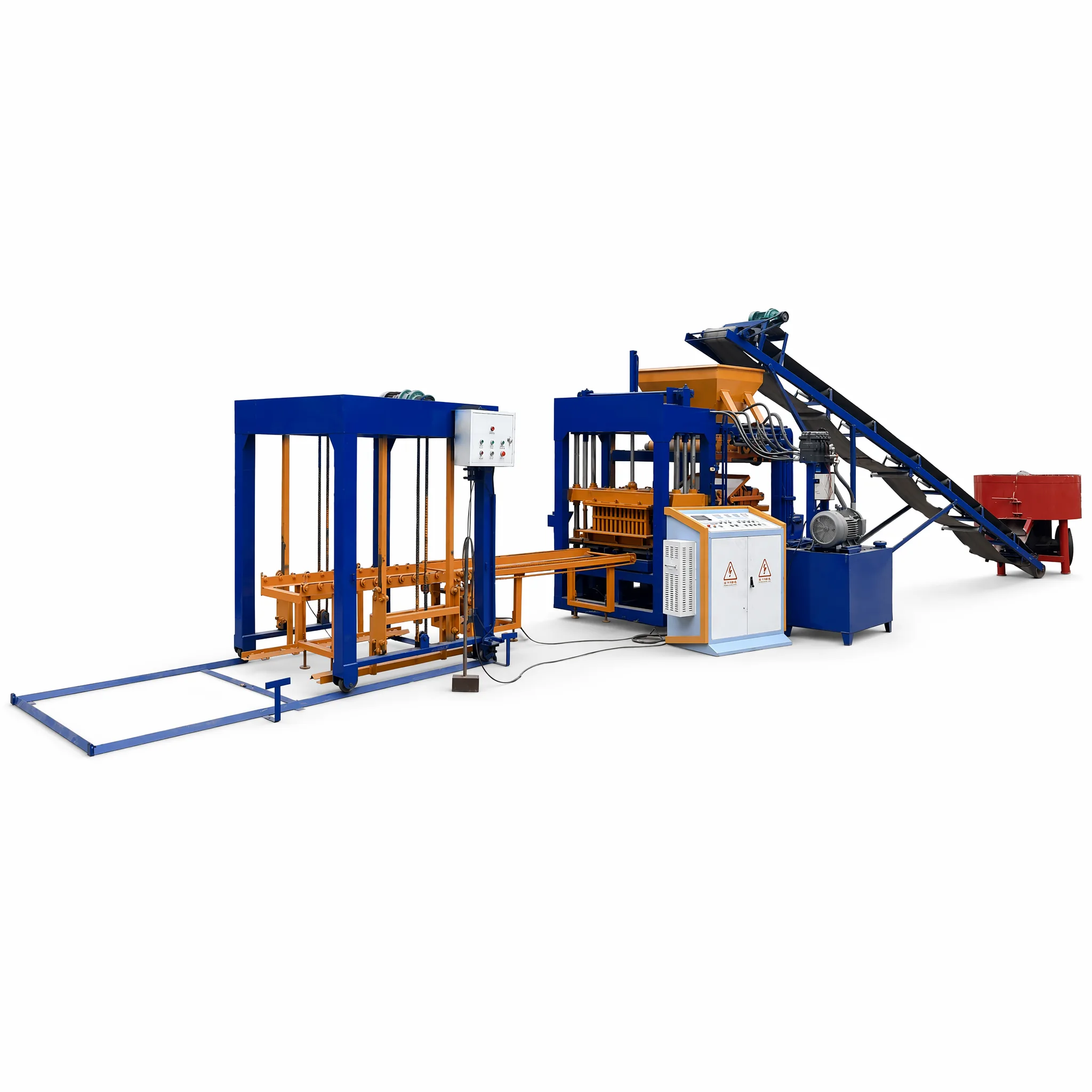

QT4-15
Brief introduction :
a)It is a compact oil hydraulic machine according to the standard of international .Many parts from abroad ensure the quality of machine and take fro the power.
b)The vibration system contains platform vibration and mould vibration so the products is very close grained and produced quickly.
c)The novel feeding system gives material exactly and average and assures the products having a high density.
d)PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
Product scope:
e)It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles，lock linkage blocks, road curb bricks, hydraulic blocks、hollow blocks, perforated bricks, and standard bricks etc.
Technical Parameters：
| Overall Dimension | 7100×1700×2610(mm) |
| Rated pressure | 16MPa |
| Main vibration form | Platform vibration |
| Cycle Time | 15-25 seconds |
| Vibrating Frequency | 4600 rolls/minute |
| Motors Power | 25.7KW |
| Pallet Size | 1020*570(mm) |
Capacity List：
| Item | Specification size | Quantity per mold | Cycle mouding | Per hour | Per day |
| Hollow brick | 400*200*200 | 4pcs | 15-20s | 720-960pcs | 7200-9600pcs/day |
| Porous brick | 240*115*90 | 14pcs | 15-20s | 2520-3360pcs | 25200-33600pcs/day |
| Standard brick | 240*115*53 | 28pcs | 15-17s | 5930-6720pcs | 59300-67200pcs/day |
