QTJ4-25
Send Inquiry
Product Introduction
Brief intruduction :

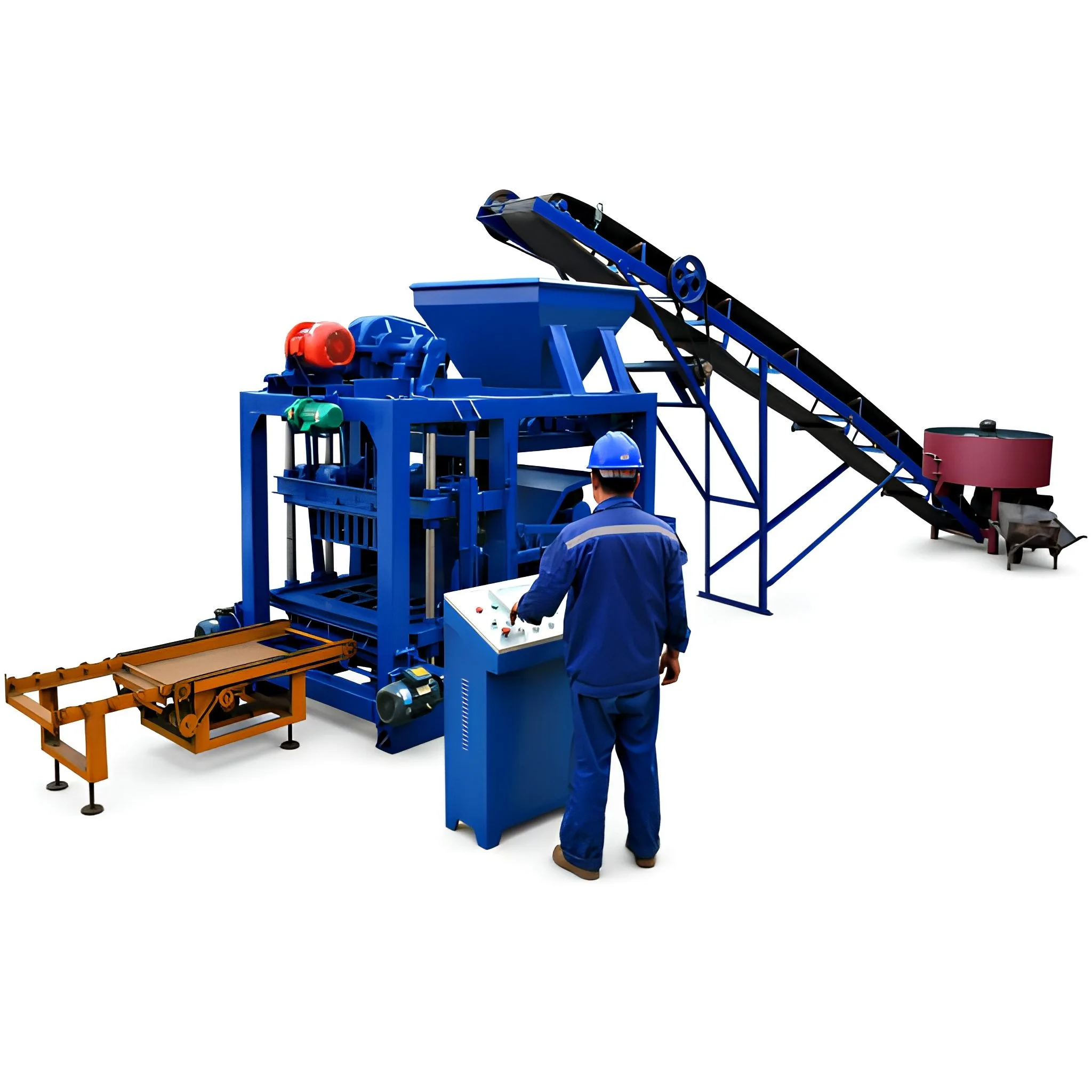

QTJ4-25 block making machine is a kind of automatic product developed by our company newly ,adopts flat vibration ,mould vibration ,and squeeze compression vibration ,manufactures the blocks with average density and high strength.,And the unique dose charging device and the strong material-distributing structure ensure the block's quality of various materials .It adopts PLC control ,and realizes the automatic plate-supplying,material-distributing ,and brick-discharging .With the high efficiency ,it is the ideal equipment to manufacture the new style wall material .
Technical Parameter：
| Overall Dimension | 6400×1500×2700(mm) |
| Rated pressure | 16MPa |
| Main vibration form | Mould and Platform vibration |
| Cycle Time | 15-25 seconds |
| Vibrating Frequency | 2800~4500 rolls/minute |
| Motors Power | 16.58KW |
| Pallet Size | 850*480(mm) |
| Total weight | 5800kg |
Capacity list：
| Item | Specification size | Quantity per mold | Cycle mouding | Per hour | Per day |
| Hollow brick | 400*200*200 | 4pcs | 24-26s | 580pcs | 5800pcs/day |
| Porous brick | 240*115*90 | 9pcs | 22-25s | 1400pcs | 14000pcs/day |
| Standard brick | 240*115*53 | 21pcs | 22-25s | 3300pcs | 33000pcs/day |
