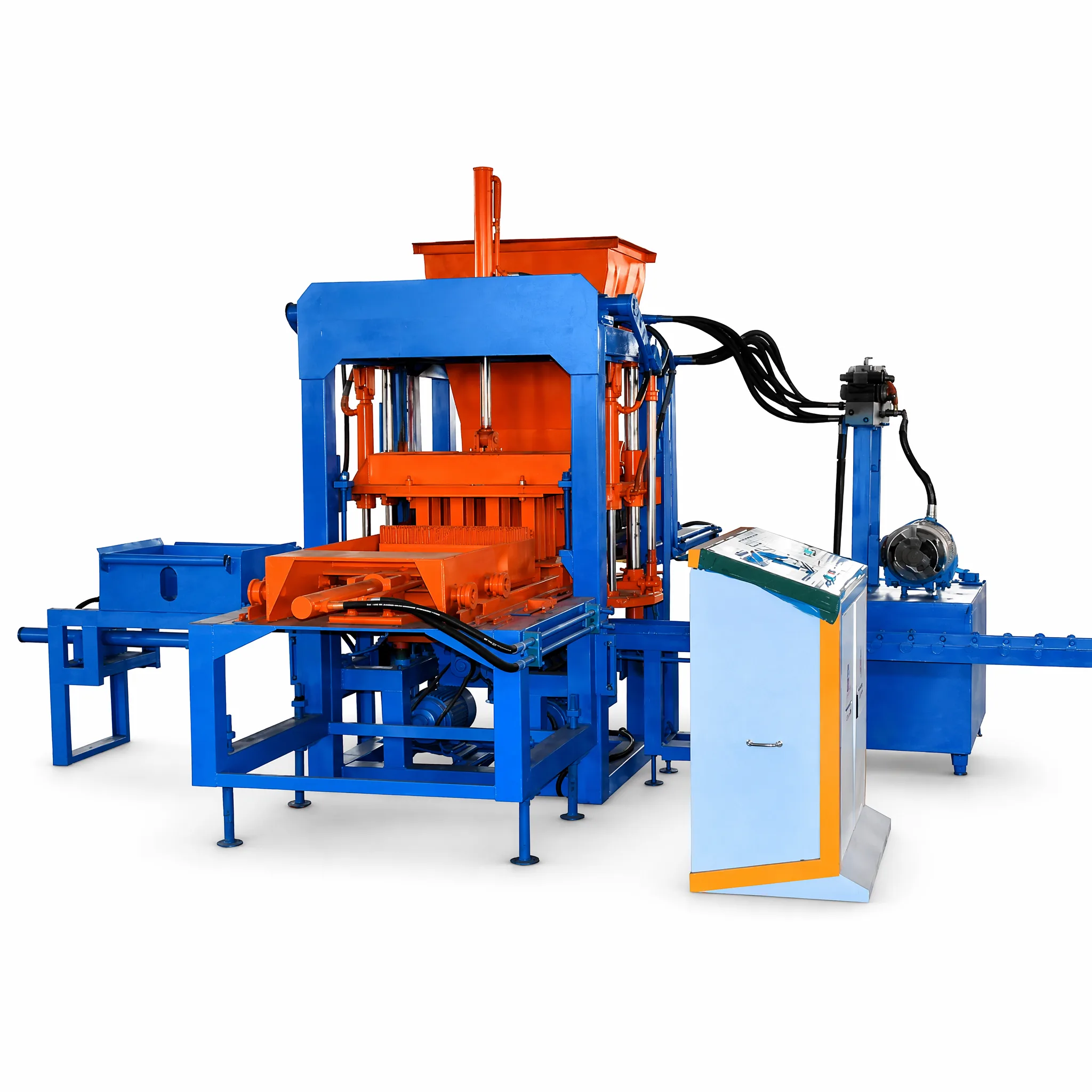

QT3-15
Brief Introduction :
A．QT3-15 block machine is applied to urban-rural concrete block enterprisemanufacturing wall blocks ,roadway blocks ,and shadow wall blocks.
B．it adopts hydraulic drive compression molding. and the high-speed and strong vibration ensure the qualified product molding layered material-distributing manufactures paving bricks of various color, it is especially applied to manufacturing high-mixture fly ash solid brick and cork bricks ,etc.
C. High quality reducer,heavy-duty design,great torque,low noise,no oil impregnation,long service life.
D. It is a compact machine with electric and hydraulic system,each procedure action locks with each other to guarantee the machine operate safely,easily and dependablely.
Technical Parameter：
| Main Vibration form | Platform vibration and pressure |
| Cycle time | 20 seconds |
| Vibrating Frency | 4600 rolls/minutes |
| Motors power | 14.25kw |
| Pallet size | 650*550mm |
| Raw materials | Crushed stones ,sand ,cement,dust and coal fly ash ,cinder,slag,gangue ,gravel,perlite,and other industrial dust . |
| Applied products | concrete blocks ,hollow/solid/cellular monsary blocks,paving stones with or without face mix ,garden and landscaping products ,slabs ,edgers,kerbstones ,grass blocks etc. |
Capacity list：
| Item | sample | specification size(mm) | qty/mould | output/1hour |
| color paver |  |
200*100*60 | 10pcs/mold | 2880pcs /h |
| color paver |  |
225x112.5x60 | 10pcs/mould | 2400pcs/h |
| color paver |  |
200*160*60 | 6pcs/mould | 1080pcs/h |
