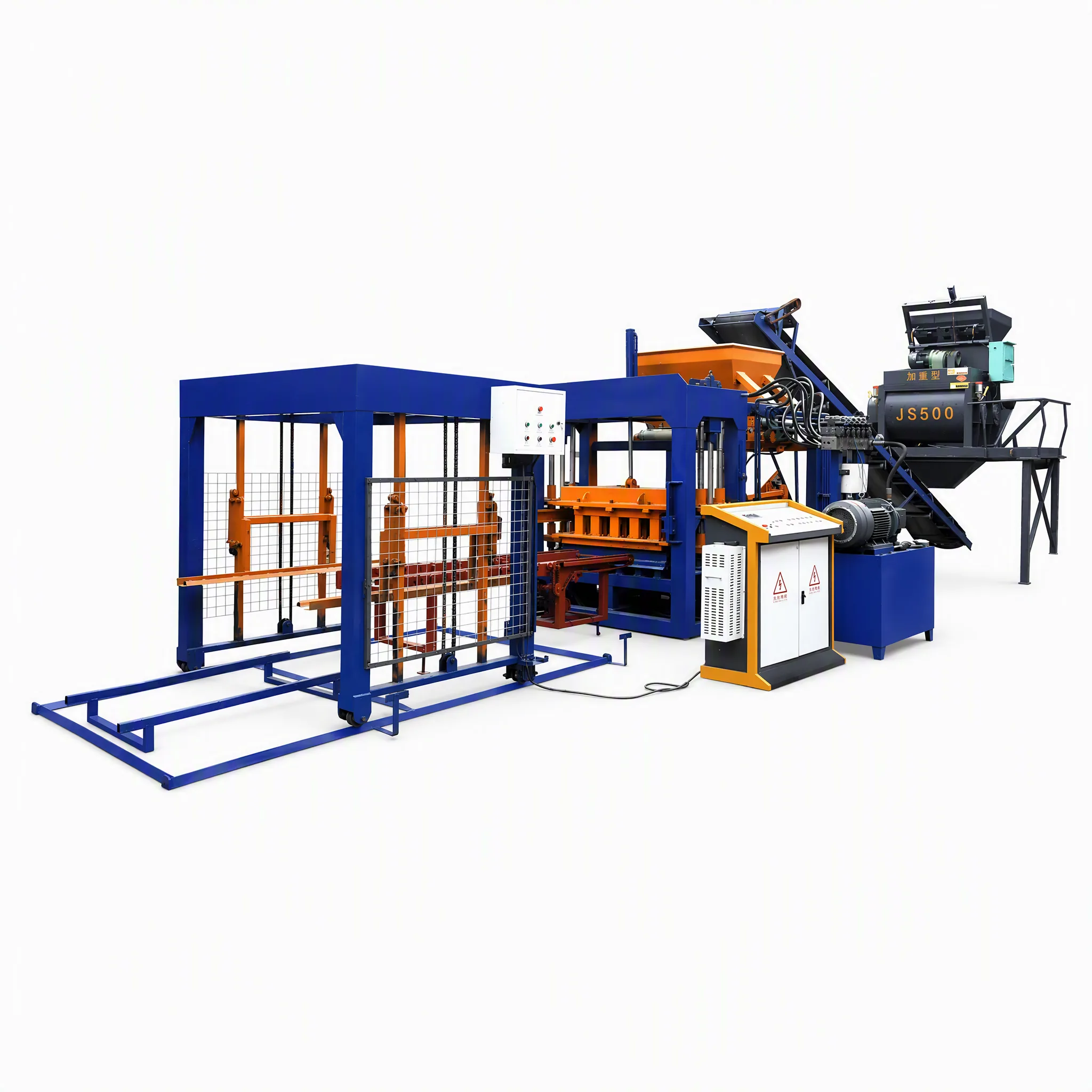

QT5-15
Brief Introduction :
(1).Multi-function. Only by exchanging its moulds, this machine can produce road kerbstones, slope-protecting bricks, interlocking pavement bricks, solid bricks, grass-planting bricks, and hollow blocks etc.
(2).By low frequency material feeding, high frequency vibrating, and pressing and vibrating both by table and mould, the concrete can be completely liquidized and air discharged within 2 or 3 seconds, in order to obtain high density and high strength.
(3). The advanced hydraulic system of hydraulic proportional control techniques can be convenient to any branch of oil pressure and oil control, which can use different raw materials to produce the same high quality products
(4). The whole process of data input and output PLC intelligent control, to achieve the ideal man-machine dialogue. The control system also includes advanced security logic control and fault diagnosis system
(5).This is the best model to produce pavers , the finished wet pavers can be taken away from pallets immediately after pressing , saves pallets investment ,60 pcs pallets are enough .
Technical parameters：
| Overall dimension | 7130*2600*2890(mm) |
| Rated pressure | 21MPa |
| Main vibration form | Platform vibration |
| Cycle time | 15-20 seconds |
| Vibrating frequency | 2800-4600 times/minute |
| Motors power | 32KW |
| Pallet size | 1100*550mm |
| Vibration force | 60KN |
Capacity list：
| PICTURE | SIZE L*W*H | PCS/MOULD | PCS/HOUR |
 |
400x200x200MM | 5 PCS/MOULD | 1200PCS/HOUR |
 |
240*115*53MM | 16 PCS/MOULD | 3600PCS/HOUR |
 |
225x112.5x60MM | 16 PCS/MOULD | 36000PCS/HOUR |
 |
1000*300*150MM | 1PCS/MOULD | 240PCS/HOUR |
