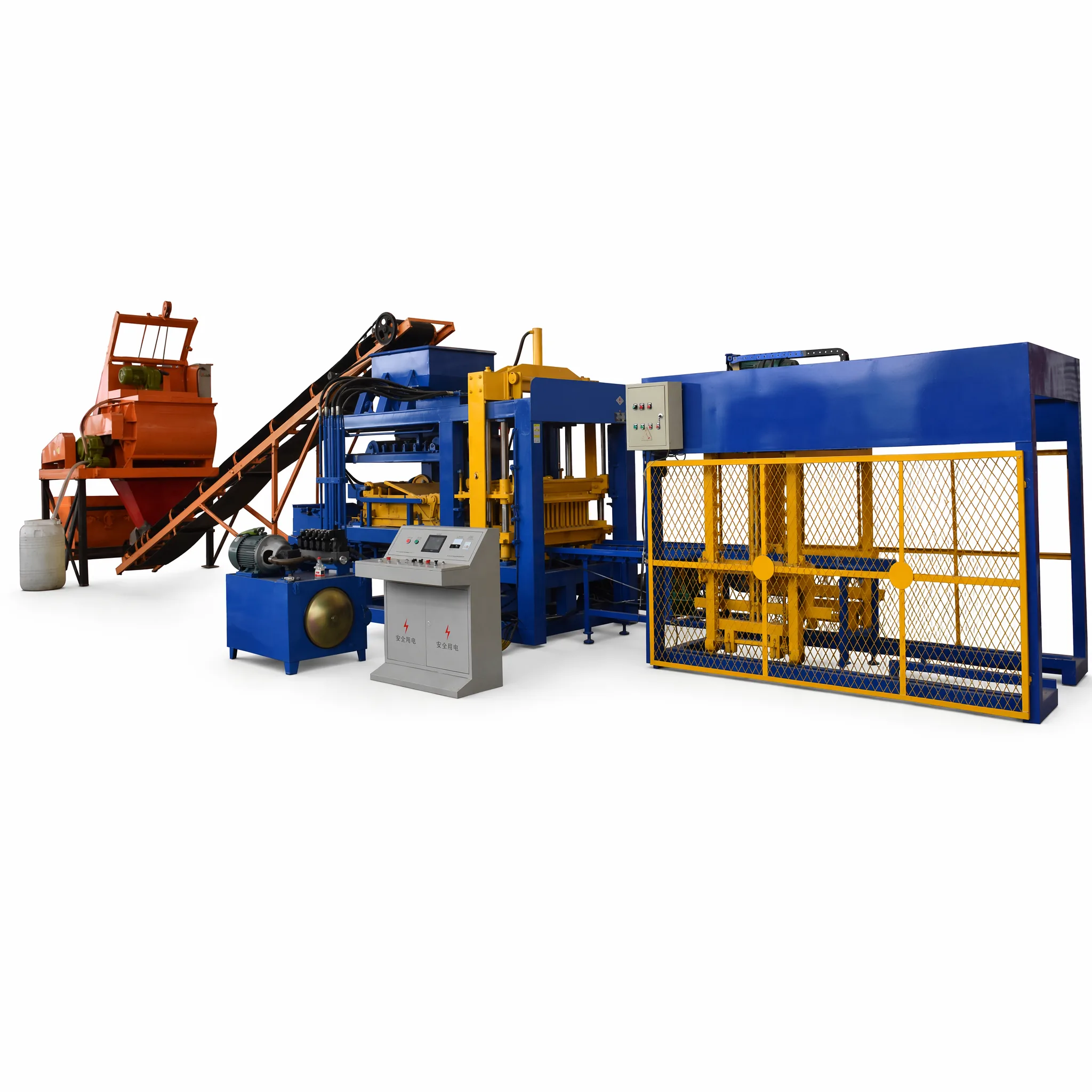

QT6-15
Brief intruduction :
Multifunction in one machine. Changing molds can produce various kinds of specification porous bricks, standard bricks, hollow bricks, with a double material-feeding machine can produce all kinds of the colored road bricks,grassland bricks, and slope protection bricks etc.
It adopts the PLC operating system, and the action procedures lock with each other,which can guarantees the machine safely and dependablely in the operation procedure.
The unique forcing material-feeding system and a specialized iron bar adjust to changing of different mould cases can have a second material-feeding effect perfectly.
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles，lock linkage blocks, road curb bricks, hydraulic blocks、hollow blocks, perforated bricks, and standard bricks
Technical Parameters:
| Overall Dimension | 7100×1500×3000(mm) |
| Rated pressure | 16MPa |
| Main vibration form | Platform vibration |
| Cycle Time | 15-20 seconds |
| Vibrating Frequency | 4500-5100 rolls/minute |
| Motors Power | 31.25KW |
| Pallet Size | 900*700(mm) |
Capacity List:
| Item | Specification size | Quantity permold | Cycle mouding | Per hour | Per day |
| Hollow brick | 400*200*200 | 6pcs | 16-20s | 1080pcs | 10800pcs/day |
| Porous brick | 240*115*90 | 18pcs | 15-18s | 4050pcs | 40500pcs/day |
| Standard brick | 240*115*53 | 36pcs | 14-17s | 8640pcs | 86400pcs/day |
